AluSkin Pro Dry Truck Body

当社の AluSkin Pro Dry トラックボディは、優れた断熱性と構造的安定性を実現し、物流車両の長期にわたるパフォーマンスを保証します。 Whole Chain Tech Auto は、10 年以上の経験を持つ中国の専門メーカーです。

お問い合わせを送信

製品説明

AluSkin Pro Dry truck body is engineered with closed-cell PU foam cores and galvanized aluminum facings, delivering lightweight design and structural stability for regional logistics fleets. The high-pressure injection process ensures a void-free foam core, providing consistent thermal performance for transporting general cargo and daily necessities.

✅ Ideal for: Long-haul Heavy-Duty, Cross-border Logistics, High-Standard Cold Chain

Supplementary Technical Parameters

パラメータ	価値
泡密度	40 - 45 kg/m3
Panel Material	0.8mm Galvanized Aluminum Plate
Applicable Temperature Range	-30℃～+70℃
標準サイズ	1200mm × 2400mm (Customizable)
Compressive Strength	≧200kPa

Other sizes can also be customized. The following are popular size references.

Body of Light Duty Dimension

パラメータ	Optional Dimension
INT.長さ	12'/14'/16'/18'/20'
内線幅	94-1/2”
INT.身長	82”

Body of Heavy Duty Dimension

パラメータ	Optional Dimension
INT.長さ	16'/18'/20'/22’/24’/26’
内線幅	96”
INT.身長	94”

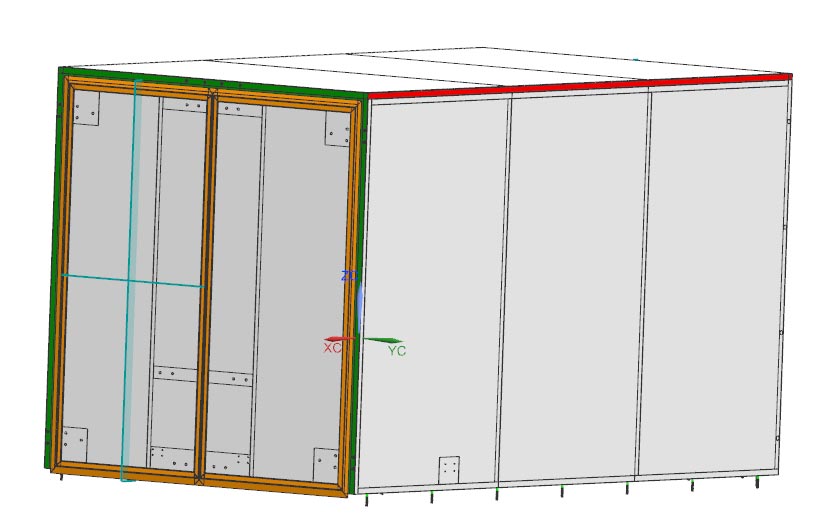

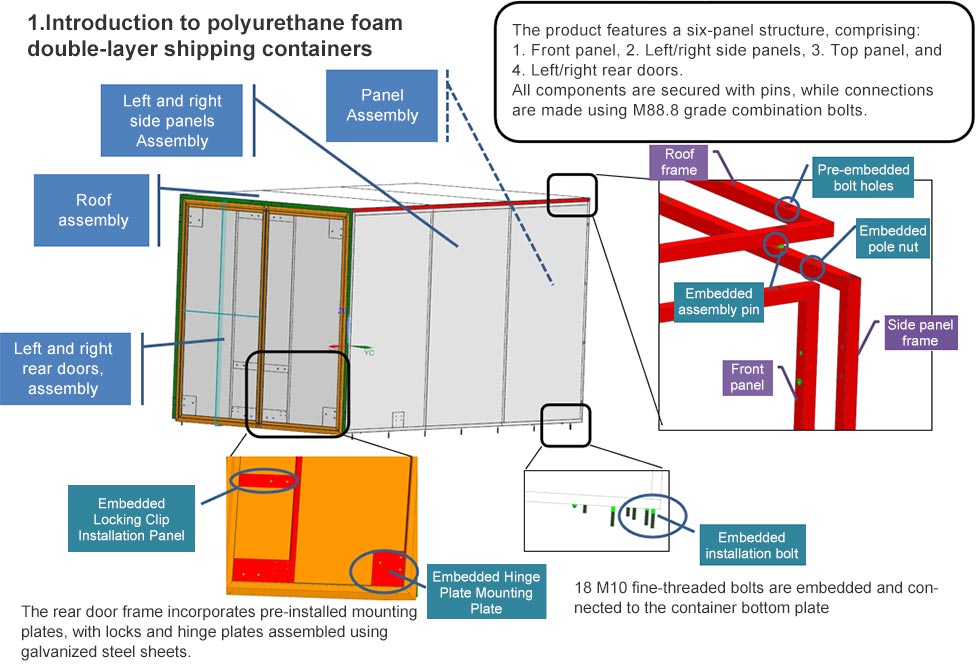

Product Structure Introduction

AluSkin Pro Dry Truck Body

ルーフパネル:PU(25MM)
Side/Front panel:PU(25MM)
Floor Panel:Five-bar Texture-sheet Aluminum Floor

製品性能

King of All-Round Performance

1 Balanced Thermal Insulation: Provides reliable thermal resistance with a typical thermal conductivity of 0.023-0.028 W/(m·K), effectively maintaining stable interior temperature.

2 Significant Weight Reduction: Contributes to an overall body weight reduction of 25%-35% compared to traditional metal structures, leading to direct fuel savings and increased payload capacity

3 Effective Strength & Filling: Offers good compressive strength (≥80 kPa). The liquid foam expands to fill complex cavities, minimizing thermal bridges and enhancing overall structural rigidity.

4 Moisture Resistant & Durable: A closed-cell structure (≥85%) effectively blocks moisture ingress, ensuring long-term performance stability and corrosion resistance.

5 Cost-Effective & Adaptable Process: The low-pressure injection process is mature and offers flexibility in production setup, representing an ideal balance between performance and cost control.
